Information System Architecture – The Bridge Between Business and IT

Information System Architecture (ISA) forms the central link between business requirements and technological implementation. It translates functional requirements from business architecture into concrete information systems while ensuring these can be operated efficiently on the IT infrastructure.

Within the context of Enterprise Architecture Management (EAM), it plays a key role: It connects business processes, data, and applications into a consistent overall picture of the IT landscape.

flowchart TD
id1(Business Architecture) <--What? How?--> id2(Information System Architecture) <--With What?--> id3(Technical Architecture)
style id1 fill:#ffffee,stroke:#eeeeee,stroke-width:2px
style id2 fill:#00ffff,stroke:#000000,stroke-width:2px
style id3 fill:#eeffee,stroke:#eeeeee,stroke-width:2px

What Exactly Does This Mean?

Information System Architecture describes the structure, relationships, and interactions of information systems within an organization.

It answers central questions such as:

  • Which applications support which business processes?
  • Where is which data processed?
  • How do systems interact with each other?
  • What dependencies exist?

EAM provides the methodological framework for this: It enables a holistic view of business and IT to master complexity and make well-founded decisions.

Objectives of Information System Architecture

  • Create transparency over the IT landscape
  • Ensure business-IT alignment
  • Reduce redundancies and complexity
  • Provide a foundation for strategic IT planning

A central problem for many organizations is a historically grown, heterogeneous system landscape with redundant functions and unmanageable interfaces.

How Can IS Architecture Be Subdivided?

Information System Architecture can be divided into several closely interconnected sub-areas:

flowchart LR
A(Data / Information) --> B(Applications)
B --> C(Integration)
C --> A

Data/Information

Data architecture describes the functional and technical data structures of an organization.

Central Aspects:

  • Business objects (e.g., customer, order)
  • Data models and data flows
  • Data quality and ownership
  • Data protection and security requirements

Data is the foundation of information systems – without a consistent data basis, no stable architecture is possible.

Objective: “Single Source of Truth” and avoidance of redundancies

Applications

Application architecture describes the totality of information systems used and their functional assignment.

Typical Elements:

  • Business applications (e.g., ERP, CRM)
  • Services / Microservices
  • Legacy systems
  • Application landscape

A key objective is managing system diversity, as too many applications with similar functions lead to increasing complexity and costs.

Objective: Consolidation and clear responsibilities

Integration

Integration architecture describes how applications communicate with each other.

flowchart TD
A(System A) -->|API| B(Integration Layer)
B -->|Event| C(System B)
B -->|Batch| D(System C)

Typical Integration Forms:

  • APIs (REST, GraphQL)
  • Messaging / Events
  • ETL / Batch processing
  • Middleware / ESB

Integration is one of the most critical aspects, as this is where the greatest complexity often arises (interface sprawl).

Objective: Loose coupling and standardized interfaces

Architecture Principles & Governance

In practice, Information System Architecture cannot be managed without clear guardrails.

Typical Principles:

  • Standardization before customization
  • Reuse before new development
  • API-First / Service orientation
  • Cloud-readiness

Governance Elements:

  • Architecture reviews
  • Target architectures and roadmaps
  • Technology standards

EAM ensures these principles are systematically applied and controlled.

How Is the Connection to Business and IT Infrastructure Ensured?

Information System Architecture works in two directions:

1. Connection to Business

flowchart TD
A(Business Process) --> B(Information System)
B --> C(Data Objects)
  • Business processes define requirements
  • Information systems implement these
  • Data forms the functional foundation

This allows analysis of questions such as:
“Which systems support which process?”

2. Connection to IT Infrastructure

flowchart TD
A(Information System) --> B(Platform)
B --> C(Infrastructure)
  • Applications run on platforms
  • Platforms use infrastructure (cloud, network, hardware)
  • Technical architecture ensures operations

Central Mechanisms for Alignment

  • Transparency through visualization (e.g., architecture blueprints)
  • Linking business and IT objects
  • Target architecture and roadmaps
  • Continuous dependency analysis

EAM enables an integrated view of all architecture dimensions here and makes relationships visible.

Conclusion

Information System Architecture is far more than a technical discipline – it is the central control instrument for the IT landscape.

It:

  • Connects business and IT
  • Creates transparency and decision-making foundations
  • Reduces complexity
  • Enables strategic further development

Without a clear Information System Architecture, there is a risk of:

  • Uncontrolled growth of the IT landscape
  • Increasing costs and risks
  • Lack of strategic controllability

With an established ISA, however, a viable bridge between business strategy and technological implementation is created – and thus the foundation for successful digital transformation.

What you can do with plaintext formats

Different types of plaintext formats and what you can do with them.

Introduction to the Plain Text World

Digital content is created today in a wide variety of forms: websites, documentation, presentations, or technical diagrams. Traditionally, such content is often created with graphical tools—such as Word, PowerPoint, or drawing programs. These tools are intuitive but have a crucial disadvantage: the content is usually stored in proprietary file formats and is difficult to automate, version, or process further.

An alternative to this is plain text formats. Here, content is not described visually but via a simple, text-based syntax. These files can be edited with any text editor, easily versioned, and automatically processed further.

Especially in software development, DevOps environments, and modern documentation processes, an approach has therefore become established that is often referred to as “Documentation as Code”: content is treated like source code—written in plain text, versioned in Git, and automatically published.

What Exactly Are Plain Text Formats?

Plain text formats are file formats whose content consists of normally readable text. They do not require special software to be read but can be opened with any simple editor.

Typical characteristics of plain text formats include:

  • Human readability – even without special software
  • Simple structure through lightweight markup syntax
  • Version control with systems like Git
  • Automatability through build pipelines
  • Portability across different systems

An example is a simple Markdown file:

# Title

This is a paragraph.

- Point 1
- Point 2

The text remains readable even when it has not yet been rendered.

This property fundamentally distinguishes plain text formats from formats like .docx, .pptx, or .vsdx, which contain complex XML structures internally and can only be meaningfully edited with special software.

What Formats Are Available?

Plain text formats can be roughly divided into two categories:

  1. Formats for structuring text
  2. Formats for describing visualizations

Both follow the same principle: content is described via a simple syntax and then automatically rendered.

Formats for Text Processing

Markdown

Markdown is probably the most widely used plain text format. It was developed to structure text as simply as possible without compromising readability.

Typical use cases include:

  • README files
  • technical documentation
  • websites
  • knowledge bases

Markdown uses a very simple syntax:

# Heading

## Subheading

**Bold**
*italic*

- List item
- List item

The strength of Markdown lies in its simplicity and broad support. Platforms like GitHub, GitLab, or many CMS systems support Markdown directly.

The downside: functionality is deliberately limited. More complex document structures are more difficult to implement with it.

AsciiDoc

AsciiDoc is a significantly more powerful text format than Markdown. It is aimed primarily at technical documentation and extensive content.

Compared to Markdown, AsciiDoc offers, among other things:

  • complex document structures
  • tables of contents
  • references
  • tables
  • variables and attributes
  • expandable functions

Example:

= Document Title
Author
:toc:

== Chapter

A paragraph.

=== Subchapter

* List item
* List item

AsciiDoc is particularly suitable for:

  • extensive technical documentation
  • manuals
  • books
  • architecture documentation

Especially in combination with tools like Antora or Asciidoctor, very professional documentation portals can be generated from it.

Other Well-Known Formats

In addition to Markdown and AsciiDoc, there are other text-based markup languages:

reStructuredText (reST)
Frequently used in the Python ecosystem, for example for documentation with Sphinx.

Org Mode
A very powerful format from the Emacs environment that combines notes, task management, and documentation.

LaTeX
A scientifically oriented typesetting system, particularly used for mathematical content and scientific publications.

Textile
An older markup format that was previously used in many wikis.

Formats for Visualization

In addition to text, diagrams and visualizations can also be described in plain text.

Here, diagrams are not drawn but their structure is described textually.

Mermaid

Mermaid is a widely used language for creating diagrams in plain text. It is now directly supported by many platforms, including GitHub, GitLab, and numerous documentation systems.

A simple example:

graph TD
A[Start] --> B{Decision}
B -->|Yes| C[Action]
B -->|No| D[End]

This results in:

graph TD
A[Start] --> B{Decision}
B -->|Yes| C[Action]
B -->|No| D[End]

Mermaid supports, among other things:

  • Flowcharts
  • Sequence diagrams
  • Gantt charts
  • State diagrams
  • ER diagrams

The great advantage of Mermaid is the simple syntax and broad integration into modern documentation platforms.

PlantUML

PlantUML is a powerful language for describing UML diagrams and many other diagram types.

Example of a sequence diagram:

@startuml
Alice -> Bob: Request
Bob --> Alice: Response
@enduml

The result:

PlantUML model

PlantUML supports:

  • UML diagrams
  • Sequence diagrams
  • Component diagrams
  • Deployment diagrams
  • C4 models
  • Architecture diagrams

PlantUML is particularly popular in the architecture and software design context.

Other Well-Known Formats

In addition to Mermaid and PlantUML, there are other text-based visualization languages:

Graphviz / DOT
One of the oldest diagram description languages for graphs.

D2
A modern diagram language with a focus on simple readability.

Structurizr DSL
A language specifically for describing architecture diagrams according to the C4 model.

TikZ
A very powerful diagram language from the LaTeX world.

Application Possibilities

Plain text formats are extremely versatile and can be used in many areas.

Notes

Many modern note-taking systems are based on Markdown or similar formats. Examples include knowledge systems, personal wikis, or structured notes.

The advantage: notes remain readable in the long term and independent of specific software.

Websites

Many modern websites are generated from plain text formats. Static site generators automatically convert Markdown or AsciiDoc files into HTML pages.

Well-known tools include:

  • Hugo
  • Jekyll
  • MkDocs
  • Antora

This principle is frequently used for documentation websites and blogs.

Documents

Classic documents can also be generated from plain text:

  • PDF
  • Word
  • HTML
  • Presentations

Tools like Pandoc enable conversion between numerous formats.

Documentation

Technical documentation benefits particularly strongly from plain text formats.

They enable:

  • Version control
  • Collaboration via Git
  • Automated builds
  • Structured documentation portals

This approach is often referred to as Docs-as-Code.

Books / eBooks

Many books are now generated from plain text sources. The same content can be transformed into different output formats:

  • PDF
  • EPUB
  • HTML

This approach is very common, especially in the technical field.

Presentations

Presentations can also be generated entirely from plain text formats today. Instead of designing slides directly in programs like PowerPoint or Keynote, the content is first written in a text-based description language and then automatically converted into a presentation.

A simple example in Markdown might look like this:

# Presentation Title

---

## Problem Statement

- Point 1
- Point 2

---

## Solution

A structured approach.

Specialized presentation frameworks interpret this structure and generate finished slides from it.

Typical tools include:

  • Reveal.js – a very common HTML presentation framework, often combined with Markdown
  • Marp – a Markdown-based presentation system focused on easy creation and export to PDF or PowerPoint
  • Slidev – a modern presentation framework for developers, based on Markdown and Vue.js
  • Pandoc – can convert Markdown or AsciiDoc into presentation formats like Reveal.js or Beamer

One advantage of this approach is that presentations can be treated just like source code or documentation:

  • Content is versionable
  • Changes are traceable
  • Presentations can be automatically generated
  • Content can be easily reused

This approach is increasingly used in technical environments, for example for:

  • Architecture presentations
  • Technical training sessions
  • Conference talks
  • Project presentations

Since the presentations are based on plain text, they can also be easily combined with other artifacts—such as automatically generated diagrams from PlantUML or Mermaid.

Images

Images and diagrams can also be generated from plain text, for example:

  • Architecture diagrams
  • Process diagrams
  • UML diagrams

The advantage: changes can be easily made in the text and versioned.

Useful Tools

Working with plain text formats is supported by a wide variety of tools.

Text Editors

In principle, a simple editor is sufficient. However, specialized editors with syntax highlighting and preview are particularly comfortable.

Popular examples include:

  • Visual Studio Code
  • Obsidian
  • Typora
  • Sublime Text

Many of these tools support plugins for Markdown, AsciiDoc, Mermaid, or PlantUML.

Converters

Converters enable transformation between different document formats.

A particularly powerful tool is Pandoc, which can convert hundreds of formats into each other.

Typical conversions include:

  • Markdown → PDF
  • Markdown → Word
  • AsciiDoc → HTML
  • Markdown → Presentation

Version Control

A major advantage of plain text formats is their integration with version control systems.

With tools like Git, changes can be:

  • Traced
  • Compared
  • Collaboratively edited
  • Automatically published

This is a major advantage for documentation teams compared to classic Office documents.

Conclusion

Plain text formats offer a flexible and future-proof foundation for creating digital content. They make it possible to structure texts, documentation, and diagrams in a simple way and process them further automatically.

Due to their readability, openness, and good integration capabilities, they fit perfectly into modern development and documentation processes.

Anyone who wants to make content maintainable, versionable, and automatable in the long term will find a powerful alternative to classic Office tools in plain text formats.

Role Concepts in EAM

What kind of roles are there in Enterprise Architecture Management?

Role Concepts in EAM

Why Roles in EAM?

Enterprise Architecture Management (EAM) operates within the tension between strategy, organization, IT systems, and operational processes. Without clearly defined roles, there is a risk that architecture work remains purely documentary or is carried out in an uncoordinated manner by various parties.

Roles in EAM therefore fulfill several central functions:

1. Clarifying Responsibilities
Architecture decisions affect many areas of a company. Roles ensure clarity on who prepares, makes, or is accountable for decisions.

2. Structuring Perspectives
EAM examines organizations from different viewpoints (Business, Data, Applications, Technology). Roles help anchor these perspectives organizationally.

3. Enabling Communication
Architecture is a translation space between business and IT. Roles define who speaks which language and represents which interests.

4. Ensuring Governance
Architecture guidelines only take effect if someone is responsible for their enforcement – for example, through architecture boards or review processes.

In short:
Roles form the organizational foundation so that architecture is not only modeled but also lived and managed.

How Do Established Frameworks Handle This?

TOGAF

The TOGAF framework defines a series of roles around architecture work, particularly in the context of the Architecture Development Method (ADM).

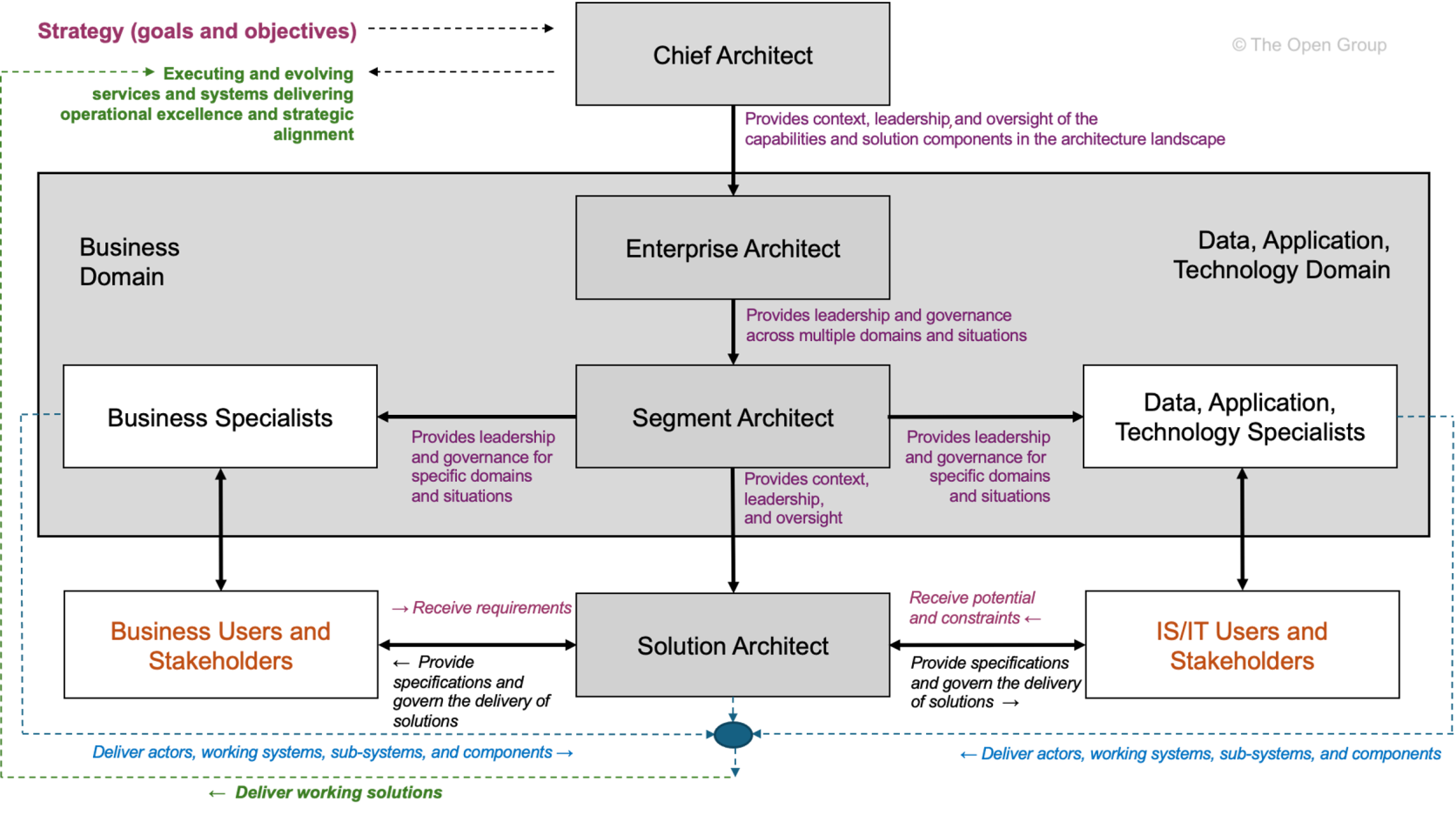

Architecture roles and relationships after TOGAF Taken from TOGAF Architecture Roles and Skills (User account needed).

TOGAF defines following architecture roles:

  • Enterprise Architect – Overall responsibility for the company’s architecture

  • Segment Architect – Responsibility for specific architecture domains (Business, Data, Application, Technology)

  • Solution Architect – Architecture of a concrete project or system

  • Chief Architect – Governance and decision-making body for architecture matters

TOGAF views roles primarily from a governance and process perspective.
They are closely linked to the phases of the ADM and architecture governance.

However, the roles are deliberately formulated generically and must be adapted by each organization to its own structure.

Zachman Framework

The Zachman Framework takes a different approach. It defines no explicit roles, but instead structures architecture artifacts along two dimensions:

The structure of Zachman

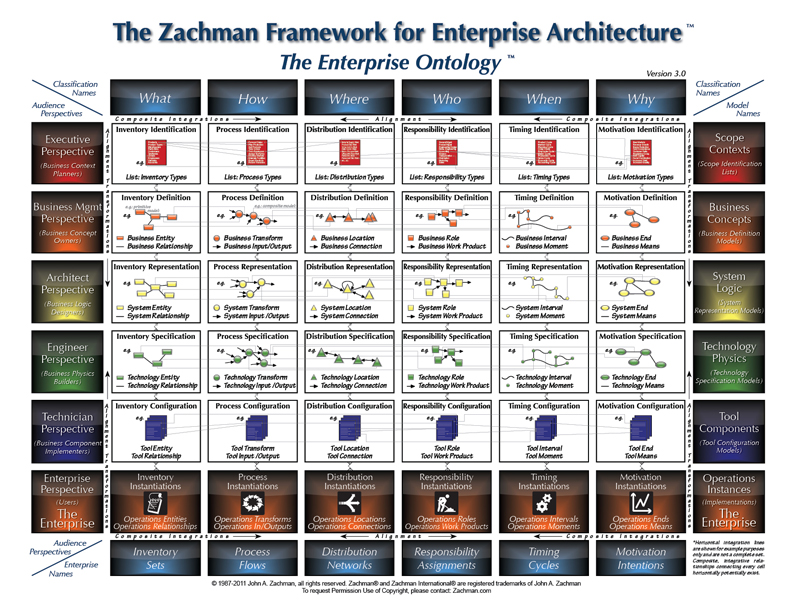

Taken from About the Zachman Framework.

  • Questions (What, How, Where, Who, When, Why)

  • Perspectives (Planner, Owner, Designer, Builder, Subcontractor, Functioning System)

However, the rows of the framework can be interpreted as implicit role perspectives:

Perspective Typical Role
Planner Strategy / Corporate Management
Owner Business Managers
Designer Enterprise or Solution Architect
Builder Developer / Implementation
Subcontractor Technical Specialists

The contribution of the Zachman Framework lies less in concrete role titles, but rather in the realization:

Architecture emerges from different perspectives and questions.

Thus, Zachman provides a good foundation for systematically deriving roles from fundamental architecture questions.

Roles in Relation to the EVA Principle

The EVA principle (Input – Processing – Output) can be used as a simple thinking structure to organize responsibilities in the architecture context.

Translated to architecture questions, six basic perspectives can be distinguished:

  • What – Objects and information

  • How – Processes and functions

  • With What – Tools and technologies

  • Why – Goals and motivation

  • When – Temporal structure and planning

  • Who – Organization and responsibilities

These questions help define roles not just by hierarchy or subject domain, but by their functional responsibility within the architecture space.

In Connection with the Basic Questions

Roles/Responsibilities for “WHAT”

The question of “What” refers to the central information objects of an organization.

Typical responsibilities:

  • Definition of central information objects

  • Data models and information structures

  • Data quality and data ownership

Typical roles:

  • Data Architect

  • Information Architect

  • Data Owner

  • Data Steward

These roles ensure that data structures are consistent and understandable across the organization.

Roles/Responsibilities for “HOW”

“How” describes the processes and functions with which an organization delivers its services.

Typical responsibilities:

  • Modeling of business processes

  • Definition of capabilities

  • Coordination between business and IT

Typical roles:

  • Business Architect

  • Process Owner

  • Capability Manager

These roles ensure that business processes and IT systems are aligned with each other.

Roles/Responsibilities for “WITH WHAT”

The question “With What” concerns the technological means for implementing processes.

Typical responsibilities:

  • Technology standards

  • Platform architectures

  • Infrastructure strategies

Typical roles:

  • Technology Architect

  • Infrastructure Architect

  • Platform Architect

They define the technical framework within which solutions are created.

In Connection with the Basic Questions

Roles/Responsibilities for “WHY”

“Why” connects architecture with the strategic orientation of the company.

Typical responsibilities:

  • Derivation of architecture principles

  • Strategic target images

  • Transformation roadmaps

Typical roles:

  • Enterprise Architect

  • Strategy Architect

  • Transformation Lead

These roles ensure that architecture decisions are strategically justified.

Roles/Responsibilities for “WHEN”

“When” concerns the temporal coordination of architecture changes.

Typical responsibilities:

  • Transformation planning

  • Roadmaps

  • Release and program planning

Typical roles:

  • Portfolio Manager

  • Program Manager

  • Transformation Manager

They ensure that architecture is not only designed but also implemented in a timely manner.

Roles/Responsibilities for “WHO”

The question “Who” concerns the organizational anchoring of architecture work.

Typical responsibilities:

  • Governance structures

  • Roles and responsibilities

  • Decision-making processes

Typical roles:

  • Architecture Board

  • Domain Leads

  • Architecture Governance Lead

These roles ensure that architecture decisions are institutionally anchored.

Scaling the Role Concept

Not every organization needs the same roles.
The number and specialization of roles depend heavily on the size and complexity of the organization.

The DPBoK (Digital Practitioner Body of Knowledge) describes four context levels, based on which roles can be meaningfully scaled.

Context I: Individual / Founder

In very small organizations, a single person often assumes multiple roles simultaneously.

Typical situation:

  • Founder = Strategy, Architecture, and Implementation

  • Low formal separation of roles

Characteristics:

  • Implicit architecture

  • Quick decisions

  • Minimal governance

Architecture work here is rather intuitive.

Context II: Team

As size increases, first functional roles emerge.

Typical roles:

  • Product Owner

  • Lead Developer

  • Solution Architect

Architecture often arises within a team and is strongly shaped by concrete products.

Context III: Team of Teams

From this stage onward, coordinating architecture roles emerge.

Typical roles:

  • Enterprise Architect

  • Domain Architect

  • Architecture Board

Central tasks:

  • Coordination between teams

  • Common architecture principles

  • Platform and data standards

Architecture is here for the first time coordinated across the enterprise.

Context IV: Established Company

In established organizations, architecture becomes its own organizational function.

Typical structures:

  • Architecture Office

  • Enterprise Architecture Practice

  • Architecture Governance

Characteristics include:

  • Clearly defined roles

  • Formal governance

  • Long-term transformation planning

Here, architecture becomes a central instrument of corporate management.

Conclusion

Roles in Enterprise Architecture Management can be defined in different ways. While frameworks like TOGAF propose concrete roles, the Zachman Framework primarily highlights different perspectives on architecture.

A systematic derivation of roles succeeds when architecture is structured along fundamental questions – for example, via the six perspectives:

  • What

  • How

  • With What

  • Why

  • When

  • Who

These questions make visible which responsibilities actually exist in the architecture space.

Which roles are actually established, however, depends heavily on the organizational context. Using the scaling levels of DPBoK, it is possible to trace how architecture roles can grow from a single person to an institutionalized architecture organization.

This makes it clear:
EAM roles are not a rigid set of titles, but a scalable organizational concept for architecture responsibility.

Once-Only in Documentation

How Documentation Engineering and Docs-as-Code Implement the Principle?

What is the Once-Only Principle?

The Once-Only principle states: Data or information should be captured, stored, and maintained only once – and reused at all relevant points. It avoids redundancy, minimizes sources of error, and reduces maintenance effort. Originally known from public administration and e-government, it is gaining increasing importance in technical documentation – especially in complex, agile, and scalable systems.

Why is Once-Only Important in Documentation?

In software projects, documentation often grows in an uncoordinated manner:

  • API documentation exists separately from user manuals.
  • Diagrams are drawn manually and not synchronized with the code.
  • Configuration notes are duplicated across multiple documents.

This leads to inconsistencies, outdated content, and increased maintenance effort. Once-Only creates clarity here:

Write once. Use everywhere.

Documentation Engineering: The Foundation for Once-Only

Documentation Engineering is the systematic, engineering-based approach to documentation – with a focus on structure, reusability, and automation. It enables:

  • Modular documents: Content is broken down into reusable building blocks (e.g., “component descriptions”, “error codes”).
  • Central sources: All content originates from a single, maintained source (Single Source of Truth).
  • Automated linking: Content is dynamically translated into various output formats (PDF, web, help systems).

Example: An API endpoint is described in a YAML file. This serves as the source for:

  • Swagger/OpenAPI documentation
  • User manual sections
  • Developer reference
  • Automated tests

→ No manual copying. No inconsistencies. Only one source.

Docs-as-Ecosystem: Documentation as a Living System

A Docs-as-Ecosystem understands documentation not as a static artifact, but as an integrated, dynamic system connected to code, tests, CI/CD, and monitoring.

Characteristics of a Docs-as-Ecosystem:

  • Automatic generation: Documentation is generated from code comments, configuration files, or tests.
  • Feedback loops: Users can provide feedback directly from the documentation – e.g., via “Was this information helpful?” buttons.
  • Versioning: Documentation is versioned along with the code – no discrepancies between version 1.2 and its corresponding documentation.
  • Searchability & navigation: Content is linked via search engines and intelligent navigation – not just readable linearly.

Impact on Once-Only: Every piece of content is part of a network. Changes in one place automatically affect all dependent documents – without manual follow-up maintenance.

Diagrams-as-Code: Visualizations as Code

Diagrams are often the biggest source of redundancy:

  • An architecture diagram is created in PowerPoint, then inserted into Confluence, then copied into a PDF.
  • When changes occur, it must be updated manually everywhere.

Solution: Diagrams-as-Code

With tools like Mermaid, PlantUML, Graphviz, or Diagrams.net (with code export), diagrams are defined as text – and can be integrated into the documentation.

Example (Mermaid):

graph TD
    A[User] --> B[API Gateway]
    B --> C[Auth Service]
    B --> D[Order Service]
    C --> E[DB]
    D --> E

→ This code can be embedded in Markdown, Sphinx, Docusaurus, or other systems. → Changes to the code automatically update the diagram in all documents. → No manual maintenance. No outdated graphics.

Docs-as-Code: The Technical Implementation of Once-Only

Docs-as-Code is the practice of treating documentation like software:

  • Versioned in Git
  • Automated with CI/CD
  • Validated with tests
  • Maintained with Pull Requests

Key elements:

  • Source code repositories: Documentation resides in the same repo as the code – or in a dedicated but linked repo.
  • Automated builds: With every change, the documentation is regenerated and published.
  • Validation: Links are checked, syntax is validated, diagrams are rendered.
  • Reusability: Using include or import mechanisms, building blocks are reused across multiple documents.

Example with Antora (AsciiDoc):

.. include::requirements.adoc

Changes to requirements.adoc affect all documents that include it.

Practical Implementation: Step-by-Step

  1. Identify redundant content → Which sections are copied multiple times? Which diagrams exist in multiple versions?

  2. Create central sources → Consolidate recurring content into reusable files (e.g., shared/, components/).

  3. Choose tools that support Docs-as-Code and Diagrams-as-Code → Markdown + Mermaid (or AsciiDoc + PlantUML) + Git + CI/CD (e.g., GitHub Actions, GitLab CI).

  4. Integrate documentation into the development process → Every code change affecting the API requires a documentation change – as part of the Pull Request.

  5. Automate validation and publication → Check links, syntax, diagrams. Publish automatically to a documentation website.

  6. Establish feedback mechanisms → Users can provide feedback directly from the documentation – e.g., via GitHub Issues or integrated forms.

Conclusion: Once-Only is Not a Luxury – It is Necessary

In a world where software is constantly growing and changing, manual documentation is no longer sustainable. Once-Only is the answer:

  • Efficiency: Less work, fewer errors.
  • Consistency: All users see the same, current state.
  • Scalability: Documentation grows with the system – without additional effort.

With Documentation Engineering, Docs-as-Ecosystem, and Docs-as-Code, Once-Only becomes not only possible – it becomes the foundation of modern, living documentation.

Several ways to model dataflows

What possible ways are there to model dataflows?

Data Flow or Information Flow?

Data flow describes the transmission of raw, unprocessed data, regardless of its business meaning.

In contrast, information flow concerns the transmission of processed or interpreted data that provides the recipient with clear and recognizable value.

Naturally, in an IT environment, when information needs to be transferred, this occurs based on data transfer. Data flow forms the technical foundation for information flow.

The representation forms described in this article use elements of both variants, but the purpose of the information flow is the primary focus.

The Example Used

Our example is an invoice dispatch via EDI. The “Accounting” department sends invoices in XML format via a central middleware to several (in this case, three) customers.

The following additional parameters are known:

Parameter Value
Data Source CRM from Marketing (for address data)
ERP from Sales (for invoice data)
Sender Accounting Department
Source System Finance Module
Recipient Customer
Business Object Monthly Invoice
Data Object PDF File
Transmission Technology SFTP
Interval Monthly
flowchart LR
CRM[CRM]
VM[ERP]
FM[Finance Module]
R(Invoice)
MW{Middleware}
FTP{SFTP}
K[Customer]

CRM --> FM
VM --> FM
FM --> R --> MW
MW --> FTP
FTP --> K

While this interaction can be represented quite simply with a basic flowchart, some information is missing. Or rather, it cannot be easily displayed in a clear format. The different levels (business, application, infrastructure) are not clearly differentiated, and the temporal aspect (monthly) is also missing.

Various Modeling Standards

There are several standards that support the modeling of information flows.

ArchiMate

As a modeling language for enterprise architectures, ArchiMate is very well suited for representing information flows. Due to its layer strategy, the transition from data flow to information flow can also be depicted.

Datenfluss als ArchiMate-Modell

Advantages

  • Thanks to the architecture layers, information flow, data flow, and the required infrastructure can be represented.
  • Depending on the tool used, individual elements can be linked to portfolio entries or generated based on them.

Disadvantages

  • ArchiMate is exclusively human-readable, not machine-readable.
  • Those unfamiliar with ArchiMate syntax may struggle with interpretation.
  • Without clear modeling guidelines, models can appear rather chaotic; one can get lost in potential details.
  • There are no specific elements for temporal aspects; these would need to be added as descriptions via notes.

UML

UML does not have its own diagram type for information flows, but several suitable diagram types can be found within the group of behavior diagrams. For this article, we apply the Sequence Diagram.

sequenceDiagram
  participant Marketing as Marketing Department
  participant CRM as CRM System
  participant Sales as Sales Department
  participant ERP as ERP System
  participant Finance as Finance Module
  participant MW as Middleware
  participant FTP as Customer FTP
  participant Customer

  Note over Finance: Trigger on the 1st of the month

  Marketing->>CRM: Maintain address data
  Sales->>ERP: Maintain product data

  Finance->>CRM: Request address data
  CRM-->>Finance: Address data

  Finance->>ERP: Request product data
  ERP-->>Finance: Product data

  Finance->>Finance: Generate monthly invoice
  Finance->>Finance: Generate PDF invoice

  Finance->>MW: Hand over PDF invoice
  MW->>FTP: Store PDF file
  Customer->>FTP: Retrieve PDF invoice

Advantages

  • Very structured representation; participants are clearly visible.
  • Chronological sequence of actions is very clear.
  • Responses/reactions can also be clearly depicted.

Disadvantages

  • Can quickly become confusing; one should focus on either information flow or data flow, not both mixed.

BPMN

BPMN is a standard for modelling business processes.

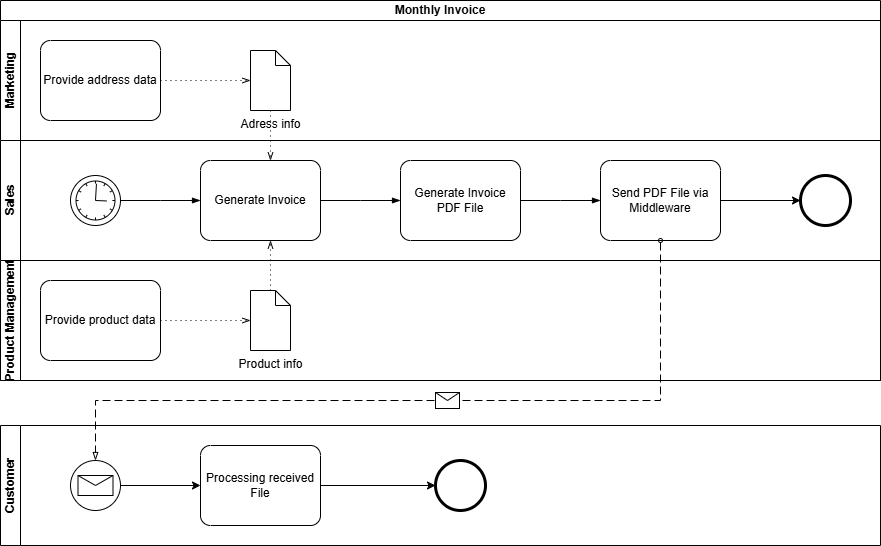

Dataflow as BPMN

Advantages

  • Using pools and lanes, participants in the information flow can be represented in a structured and clear manner. Even more complex information flows with, for example, multiple recipients, can be easily implemented.
  • Using event messages, intervals or temporal execution points can be clearly depicted.
  • A BPMN model is also machine-readable or executable via a BPM engine.

Disadvantages

  • To represent the infrastructure and architecture surrounding the information flow, BPMN lacks the necessary specific representation elements.

Conclusion and Personal Recommendation

All three notations – UML sequence diagrams, BPMN, and ArchiMate – offer valuable approaches for modeling information flows and architectures. However, from my perspective, ArchiMate stands out: It is the most versatile language and particularly suitable for mapping the interplay of architectural layers in EAM – from strategy through business processes to technology.

ArchiMate enables the representation of not only sequence flows or processes (albeit not as detailed as UML or BPMN), but above all architectural dependencies and relationships. This holistic view is crucial for understanding and managing complex enterprise architectures. While BPMN and UML sequence diagrams are superior in their specialized areas – processes and interactions, respectively – ArchiMate offers the necessary flexibility to map all layers with a single notation.

My Recommendation:

  • For organizations with limited resources (e.g., small or medium-sized organizations), ArchiMate is the most pragmatic choice, as it covers most requirements without relying on multiple notations.
  • If capacities are available, a specialized use of the languages is worthwhile: BPMN for detailed process modeling, UML sequence diagrams for technical interactions, and ArchiMate as an overarching framework that brings everything together.

Thus, ArchiMate is not just a notation, but a key tool for mastering the complexity of modern enterprise architectures – without losing track of the big picture.

Portfolios in EAM, made visible with the IPO-model

Have a look at the possible portfolios in EAM, and how they can be derived from simple questions.

From IPO to EAM – How Architecture Portfolios Can Be Derived from Simple Questions

The IPO model (Input – Processing – Output) describes a fundamental pattern of information processing.
It is deliberately kept simple and precisely therefore universally applicable – far beyond technical systems.

When this mental model is transferred to Enterprise Architecture Management (EAM), a surprisingly clear logic emerges:
Basic guiding questions can be derived from IPO, which in turn lead directly to the well-known architecture portfolios.

IPO as a Starting Point

At its core, IPO describes three aspects:

  • Input – what information is available?
  • Processing – what happens to this information?
  • Output – what results are produced?

Applied to architecture work, this initially yields three central questions:

  • Which information is relevant?
  • How is this information processed?
  • With what means is this processing implemented?

These three questions form the substantive core of the consideration.
They describe what is being examined and how information processing fundamentally works.

In practice, however, it quickly becomes apparent:
This perspective alone is insufficient for robust architectural decisions.

Architecture does not exist in isolation, but rather:

  • within organizations,
  • with a specific purpose,
  • and over an extended period of time.

Therefore, the three core questions must be supplemented by additional perspectives that take context, responsibility, and time into account.

From this extension arise three additional guiding questions:

  • Who bears responsibility?
  • Why is something designed in a certain way?
  • When is something relevant or valid?

Together, these six guiding questions form a complete, yet simple, foundation for systematically exploring enterprise architectures.

The Derived Guiding Questions

Thus, six fundamental guiding questions emerge from EVA thinking:

1. Which information is relevant?

This question arises directly from the Input perspective.

It forms the basis for:

  • business objects
  • information
  • data structures
  • data flows

Assigned Portfolio:
Information / Data Portfolio

2. How is information processed?

This question is derived from Processing.

It describes:

  • business processes
  • business rules
  • functions and services
  • their implementation in applications

Assigned Portfolio:
Business & Application Portfolio

3. With what means is processing implemented?

This question is also part of Processing, but with a focus on the means.

It addresses:

  • technologies
  • platforms
  • infrastructure
  • technical standards

Assigned Portfolio:
Technology / Infrastructure Portfolio

4. Who is responsible?

This question supplements EVA with the organizational dimension.

It clarifies:

  • roles
  • responsibilities
  • ownership

Assigned Portfolio:
Organisation / Capability Portfolio

5. Why is something designed this way?

This question establishes the purpose.

It relates to:

  • goals
  • principles
  • strategic drivers
  • value arguments

Assigned Portfolio:
Strategy / Motivation Portfolio

6. When is something relevant?

This question introduces the time dimension.

It describes:

  • temporal validity
  • transitions
  • dependencies
  • lifecycles

Assigned Portfolio:
Roadmap / Lifecycle Portfolio

Graphical Classification

The following diagram shows how the guiding questions can be logically derived from the EVA principle and assigned to the respective portfolios:

flowchart TB
    EVA["EVA Principle<br/>Input · Processing · Output"]

    Q1["Which information?"]
    Q2["How is it processed?"]
    Q3["With which means?"]

    Q4["Who is responsible?"]
    Q5["Why is it done this way?"]
    Q6["When is it relevant?"]

    IPO --> Q1
    IPO --> Q2
    IPO --> Q3

    Q1 --> P1["Information / Data Portfolio"]
    Q2 --> P2["Business & Application Portfolio"]
    Q3 --> P3["Technology Portfolio"]

    Q4 --> P4["Organisation / Capability Portfolio"]
    Q5 --> P5["Strategy / Motivation Portfolio"]
    Q6 --> P6["Roadmap / Lifecycle Portfolio"]

The diagram does not show a hierarchy, but rather a conceptual derivation:

  • EVA provides the basic pattern
  • the guiding questions explore the context
  • the portfolios structure the content

Commonalities and Dependencies

In practice, these portfolios do not exist in isolation:

  • Without clarity about information, processes and systems remain vague.
  • Without understanding processing, the connection between business and IT is missing.
  • Without suitable technology, requirements cannot be implemented.
  • Without defined responsibility, knowledge is not sustainable.
  • Without strategic purpose, legitimacy is missing.
  • Without time reference, no steering is possible.

The guiding questions act as the connecting element between the portfolios.

Conclusion

The IPO principle shows how information processing fundamentally works.
By deriving simple guiding questions from it and assigning them to the well-known EAM portfolios, a clear and understandable structure for architecture work emerges.

The added value lies not in new frameworks, but in the consistent application of simple questions:

Good architecture work begins where
connections are understood –
not where additional complexity is created.

Sometimes, it is enough to reorder what is already known.

Use the IPO-model with EAM

How to use the IPO model within Enterprise Architecture Management?

What is the IPO Model?

The IPO Model refers to the fundamental concept of data processing, where the three letters stand for Input, Processing, and Output.

These three terms describe the basic logic of information processing.

flowchart LR
id1("Input") --> id2("Processing") --> id3("Output")
style id1 fill:#ffff00,stroke:#333,stroke-width:2px
style id2 fill:#00ffff,stroke:#333,stroke-width:2px
style id3 fill:#ffff00,stroke:#333,stroke-width:2px

In the classical sense, this refers to physical components, i.e., hardware:

Input Processing Output
Keyboard
Mouse
Touchpad
Joystick
Scanner
Barcode/QR Code Reader
Main Processor
CPU
Chipset
Controller
Monitor
Display
Speakers
Projector
Printer
Plotter

However, the principle is much more universally applicable than just for physical IT components.

Where else can it be applied?

The IPO principle can be applied in any conceivable area. Every interaction, every process can be mapped using it.

Because every interaction, even a simple dialogue between two people, takes in information, processes it, and generates a response.

As an example, here is a short dialogue regarding well-being from the perspective of the person being asked:

flowchart LR
id1("Hears 'How are you?'") --> id2("Processes question, thinks about answer") --> id3("Answers 'Very well, thanks.'")
style id1 fill:#ffff00,stroke:#333,stroke-width:2px
style id2 fill:#00ffff,stroke:#333,stroke-width:2px
style id3 fill:#ffff00,stroke:#333,stroke-width:2px

Every situation or process can be broken down into the three steps Information Acquisition, Information Processing, and Information Output.

The IPO Principle in EAM

To sustainably transfer the IPO principle to enterprise architectures, the elements must still be secured by fundamental questions.

  • What (which source information) do I need to start or be able to start the process?
  • What (which target information) do I need to complete the process?
  • How (according to which rules) do I convert the source information into target information?

With these questions, the classical IPO principle is addressed. For architectures, the following question must also be asked:

  • With What (by which means) do I achieve this?

The What and How questions are fundamentally handled at the business level, as they primarily address the functional process.

The With What is provided by the technology level (through the infrastructure).

The information system level (also called application level) serves as an intermediary/translator and ensures seamless support of the business department by IT. Thus, the purpose of enterprise architectures is fulfilled.

flowchart TD
id1("Business Architecture") <--What? How?--> id2("Information System Architecture") <--With What?--> id3("Technical Architecture")
style id1 fill:#ffff00,stroke:#333,stroke-width:2px
style id2 fill:#00ffff,stroke:#333,stroke-width:2px
style id3 fill:#00ff00,stroke:#333,stroke-width:2px

In addition to the basic questions What, How, and With What, the following supplementary questions arise:

  • Why is this necessary? (Purpose and intent)
  • When (By when) is this needed? (Timeframe)
  • Who is responsible for this? (Accountability)

The supplementary questions are deliberately kept very general, as they can be applied point by point at any stage of the process.

WHY WHEN WHO
WHAT Why are the source/target information needed? When/In what timeframe are the source/target information needed? Who is responsible for the source/target information? (Data Owner)
HOW Why must the information be processed? When/In what timeframe must the information be processed? Who is responsible for the processing or the processing process? (Process Owner)
WITH WHAT How is the use of the required tool justified? When is which tool needed/used? Who is responsible for the required tools?

Conclusion

Anyone who has been dealing with Enterprise Architecture Management for some time and has had insight into one or another framework will find these questions familiar.

The Zachman Framework also knows six perspectives identified by question words: What (Data), How (Function), Where (Network), Who (People), When (Time), and Why (Motivation). The only difference in my representation is that I have replaced Where with With What. The reason for this is quite simple to explain. In today’s world, we are so digitalized and networked that the physical Where plays only a subordinate or almost no role at all. More important nowadays are the tools used, namely the With What.

In my representation, I also oriented myself towards TOGAF, where the questions are not explicitly mentioned as such but are covered via the offered architecture levels:

  • Business Architecture: Describes the “Who” and “Why” aspects (e.g., organigrams, goals, principles).
  • Data Architecture: Focuses on the “What” (e.g., data models, data flows).
  • Application Architecture: Deals with the “How” (e.g., application landscapes, interfaces).
  • Technology Architecture: Addresses the “With What” (e.g., infrastructure, networks, locations).

My representation of IPO in relation to EAM is therefore not a complete reinterpretation, but rather aims to show, from the perspective of a pragmatic approach, how it can be applied.

News

ProBase is now in Beta

ProBase is now in Beta!

ProBase reaches beta status

Although I haven’t yet achieved all content goals for this step—as I also wanted to make some downloads available—the most important documentation articles have been created, and I’ve managed to maintain the blog’s two-week rhythm.

Additionally, no errors should occur while using the site, even though not all features have been enabled yet.

Next steps

Over the next four months (leading up to the official launch on July 16, 2026), we’ll be stepping on the gas! :-)

Why am I doing ProBase?

What are the main reasons for this website?

Why ProBase at all?

What does the name “ProBase” stand for?

The name ProBase has nostalgic reasons: in the early 2000s, I was self-employed, and my company website ran under “probase.at” (I was living in Austria at the time).
The name emerged from a brainstorming session. Back then, I primarily wanted to offer services related to software development and databases. From the terms Programming and Database, “ProBase” was eventually created. I also liked the name because it could be interpreted as “professional Base”.
On a whim, and now living in Switzerland, I registered “probase.ch” in reference to this past, without having a specific purpose for it.
“Programming” and “Database” no longer fit today, but I still like the name and wanted to use it meaningfully.

Reason for launching ProBase

Basically, the website serves a purpose in itself. I want to expand my knowledge about enterprise architectures and documentation and have been looking for a way to collect everything in a structured manner.
Of course, there are many useful tools for local installation to gather and organize knowledge. However, at the same time, I also wanted to take a more technical approach myself and try out markup languages like Markdown and AsciiDoc, as well as tools that allow me to use them. Markdown is often used – alongside wikis – for so-called Static Site Generators. Hugo appealed to me so much that I definitely wanted to create a website with it. This is how the idea and purpose for the domain probase.ch was born.

Why trilingual?

Well, I grew up bilingual (German/French) and want to reflect that, plus English. This also fits very well in Switzerland. There is even an idea to translate the site into Italian, but for that, I still need to learn the language ;-)

ProBase is Open, at least as an Alpha Version!

I hereby officially declare the ProBase website open!

What Exactly is ProBase?

ProBase aims to provide a blog and practical resources on the topics of Enterprise Architecture Management and Documentation Engineering.

Website Structure

Blog

In this section, I share self-written articles (partially with the help of AI) on these topics. Examples include use cases, specific tutorials, opinions on current developments, etc. As a rule, a new article should be published every second Saturday.

Docs

This section will only become fully active at the start of the beta phase. Here, I intend to offer short documentation (also self-written) on frameworks, tools, and applications relevant to the two main topics.

Downloads

Here, I will offer applicable templates, scripts, or snippets as soon as they are available.

Guides

This refers to self-created books/guides or more extensive documentation; we’ll see what ideas come to mind ;-)

Courses

In this section, I plan to create interactive courses to complement the Docs and Books.

Roadmap

Like any project, this one also has a timeline and roadmap.

Alpha Stage (01.01.26 - 15.03.26)

In this stage, only the blog is available from the start. By the beginning of the next stage, some Docs and Downloads should already be added.

Work will also continue on the website in general, bugs will be fixed, etc.

Beta Stage (16.03.26 - 15.07.26)

The Docs and Downloads sections will be expanded, and the first entries in the “Courses” section will be added.

Technically, the website should no longer contain any errors.

Production (from 16.07.26)

From this point on, the final section (Books) will be available, and new articles, Docs, Downloads, Courses, and Books will be continuously created and published.
